These are built to order so please contact me for availability and delivery but generally a quick turnaround.

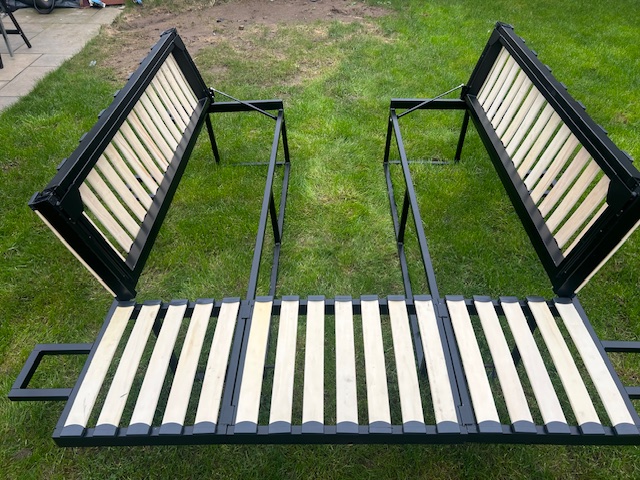

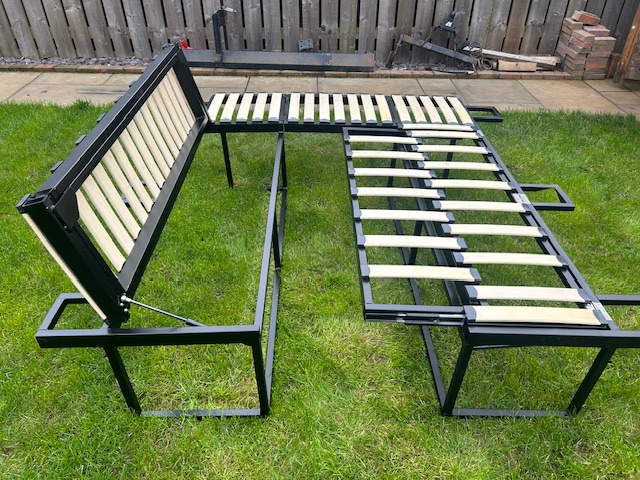

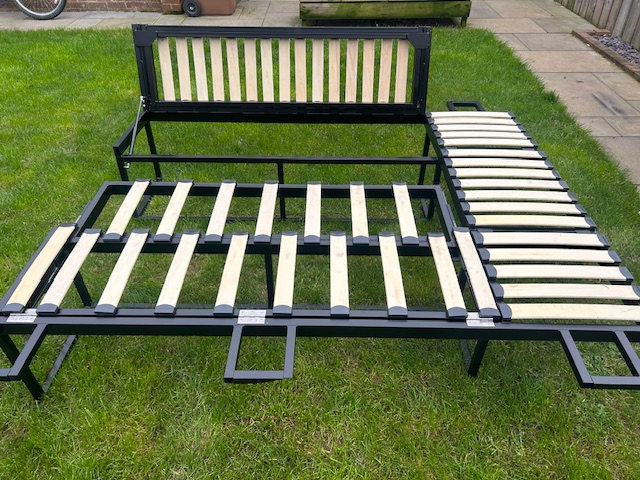

This listing is for a U-Shape lounge set of bed frames
To fit vehicles such as Relay, Boxer, Ducato
These frames are lightweight and great for storage with the lift up top complete with a gas ram, The slide out section runs on double extension heavy duty ball bearing runners so no need for front legs like most pull out beds.
These are a similar bed frame to the Sprinter and Crafter but due to Relay, Boxer , Ducato Having a higher wheel arch these have separate outriggers at the rear to keep the frames at a nice height.
These frames are as follows…
615mm Depth ( including the 175mm outrigger )
410mm Steel height ( 425 – 430mm top of slats )
290mm Pull out
Making a bed width of 1810mm
I will need a overall width measurement when ordering to make the infill piece that go’s between the 2 benches to create the U shape.
The U shape lounge seating has a 400mm overhang at the rear to give a good storage area inside the rear doors.
Please choose the required length of bed from the options and if you require an in-between of the listed measurements please purchase the size above your required length and state the length you would like upon checkout.
These frames are designed to be used on a van with an insulated floor so depending on a build they may need to be built with longer legs to clear the arches.
If delivery is selected these will be sent on a pallet.
As per all beds on the website if the size you are after is not listed or you require any bespoke sizing please don’t hesitate to contact me.
